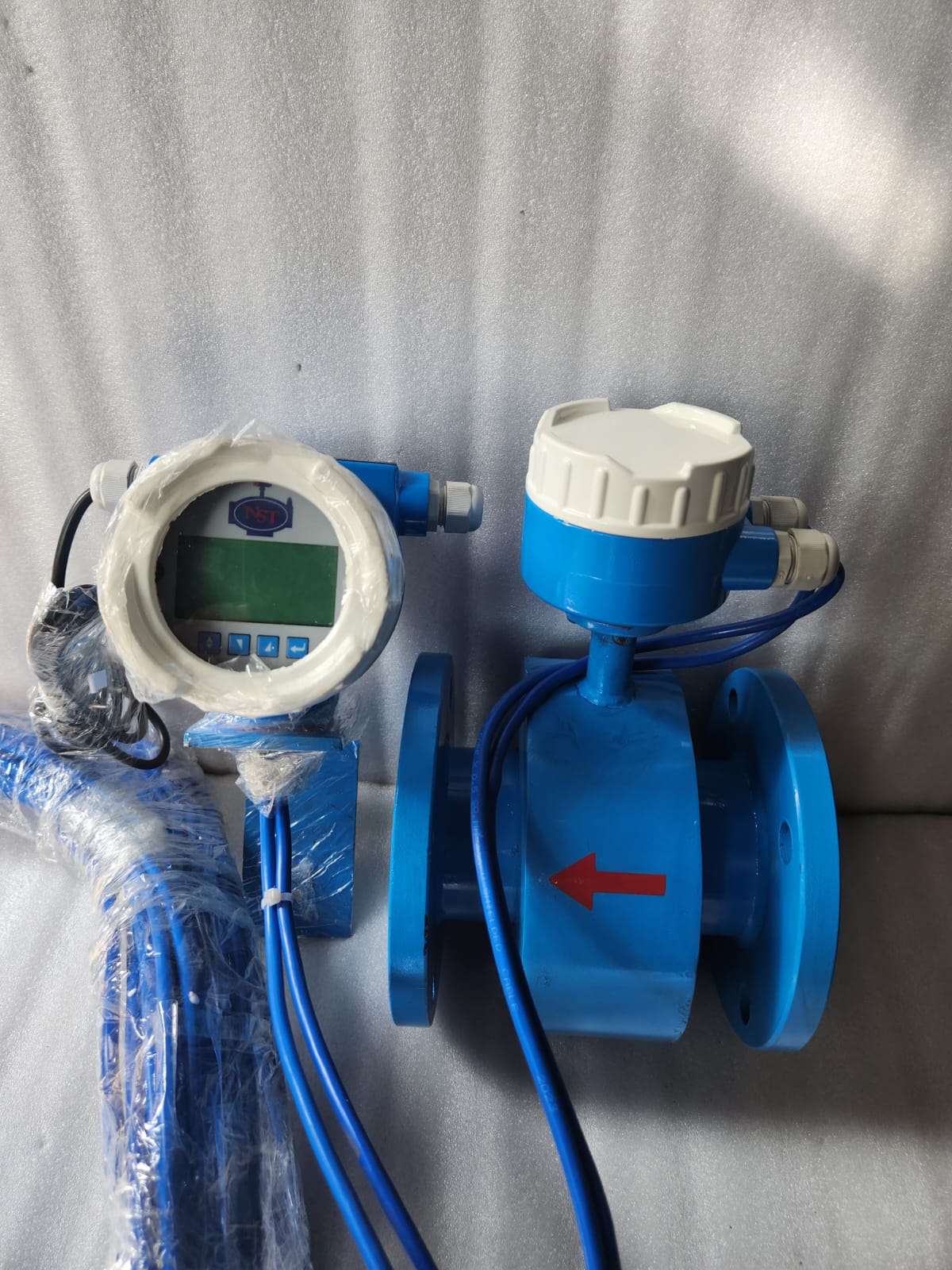

Electromagnetic Flow Meter

APPLICATION :

• Water Supply Networks, Chemical, Petrochemical and Process Industries (Only Conductive Liquids)

• Pharmaceutical Industries / Paper and pulp Industries / Fertilizer Industries / Beverage Industries

• Waste - Water management , Sugar, Food, Drug and Beverages Industries

• Effluent Treatment Plants, Aluminum, Steel, Mining and Dredging Industries

SPECIFICATION :

• Suitable for pipe sizes : DN 10 to DN 2000

• Media Conductivity (Min) : 10 us / cm (Consult factory for 5 us/cm)

• Media Pressure : PN 40 up to DN 80, PN 16 upto DN 200

& PN 10 up to DN 600

• Media Temperature (PTFE) : 0"-180c with remote transmitter

0"-120c with integral transmitter

0"-90c max for other Liners

• Material : SS 316 (Non - Magnetic)

• Liner : PTFE / Neoprene / Polyurethane

• Electrode : SS / Hostelloy C / Ta / Ti / PL

• End Connection / Flanges : Carbon steel / SS 304 / SS 316 / SS 316L

• Coil Housing : Carbon steel / SS, Epoxy painted

• Transmitter : Cast aluminum (Lm6), Epoxy painted

• Power supply : 110 / 240 V AC + 15 % 50 Hz

• Power consumption : 20 VA

• Analog Output : 4-20 mA / DC / 0-20 mA DC

• Communication port (Optional) : RS -23 / RS - 485 MODBUS RTU protocol

• Response time : 5 second

• Flow velocity Range : 0.3 to 10 m/s

• Ingresss Protection : IP - 65 (IP 68 on request)

• LED Display : 4 Digit Indication for flow rate and 8 digit

indication for Totaliser programming

from keyboard for engineering unit

Accuracy : 0.5 % of measured value (calibrated) at

eference conditions

• Accuracy : 2 % of span

• For flow Between 0 to 100 % : Refer Error Diagram

• Reference Conditions

• Power Supply : Nominal

• Ambient Temperature : 25 + 2c

• Load Resistance : 500

• Repeatability : + 0.2% of span

• Effect of Ambient Temperature : Less then 0.2% per 10c

• Effect of power supply : Less then 0.1% per

• 10% Voltage Variation

• Effect of Load Resistance Less than 0.1% of span
