We Ensure Best Product

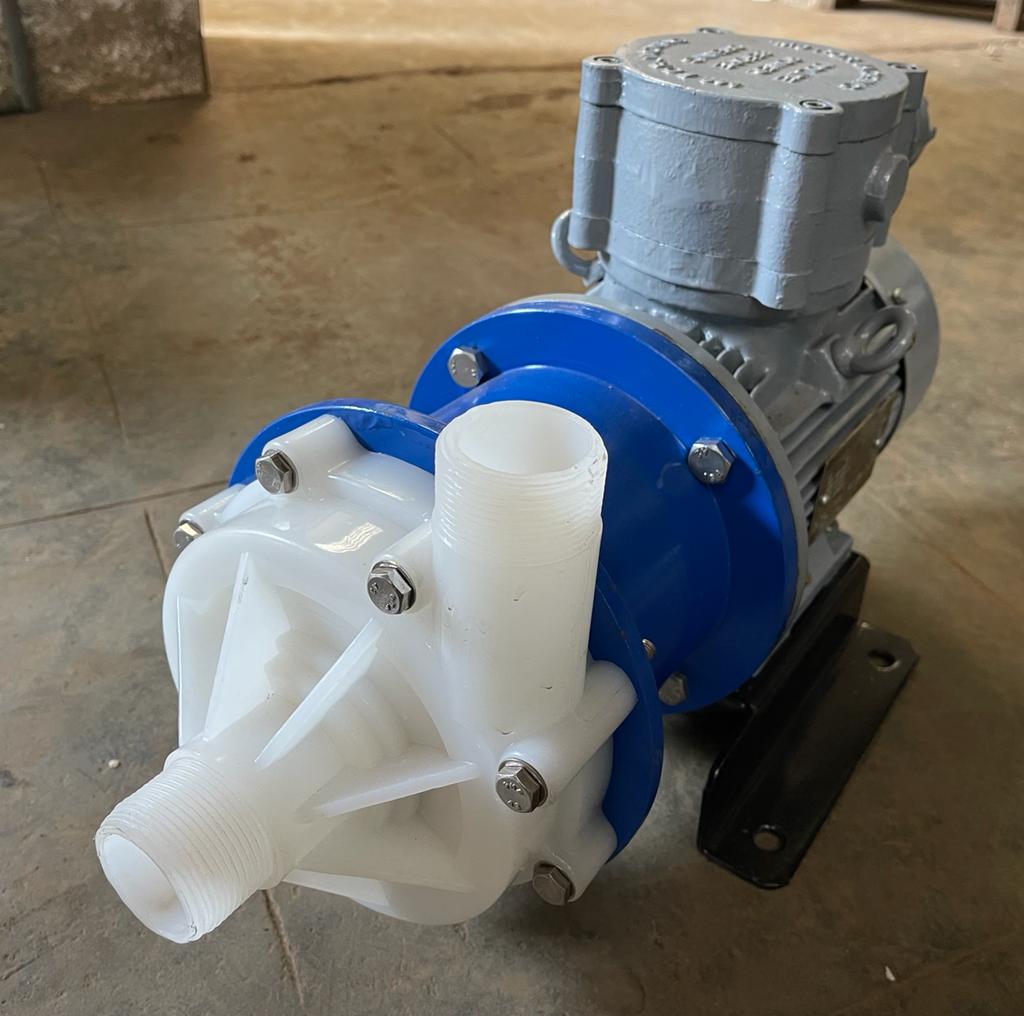

Magnetic drive design eliminates the conventional method of shaft coupling. Hence the pump casing is fully sealed from drive end which gives away the use of conventional sealing system . There is no seal used and hence no troublesome seal repairing and replacement , leakage and production lost. Impeller and drive magnets are permanent rare earth magnets. They prevent slippage and ensure that full motor horsepower is converted into pumping power.
:- All Pumps are rated for continuous duty with class “E” Insulation.
:- All pumps are Centrifugal Semi-Open Impeller Type pumps and need priming before start up.
:- SS-316 Magnetic pumps are available upto 5 HP
APPLICATIONS & USER INDUSTRIES :-
Ideal for transfer of corrosive chemicals , plating chemicals , acids , dyes , solvents , toxic & fuming liquids , petrol , kerosene etc. Useful in chemical industries , pharmaceuticals and food processing industries. Electroplating , Galvanizing
/ Anodizing plants . Laboratory equipments and PCB palnts . Medical equipments and X-Ray film plants. Textile Dyeing houses . Liquid dispencing machines and Chemical Filtration equipments. For hazardous duty conditions with flame proof motors.High Efficiency due to permanent magnet power coupling.
RANGE :-
:- Capacity:- from 10 LPM upto 750 LPM
:- Head :- upto 40 mtrs.
:- Material of Construction :- Poly Propylene Glass Filled , PVDF upto 110 Deg C & SS-316
:- Operating Temp :- PP upto 80 deg C , PVDF upto 110 deg C Special Pumps for high temperature upto 150ºC and 250ºC for SS-316
